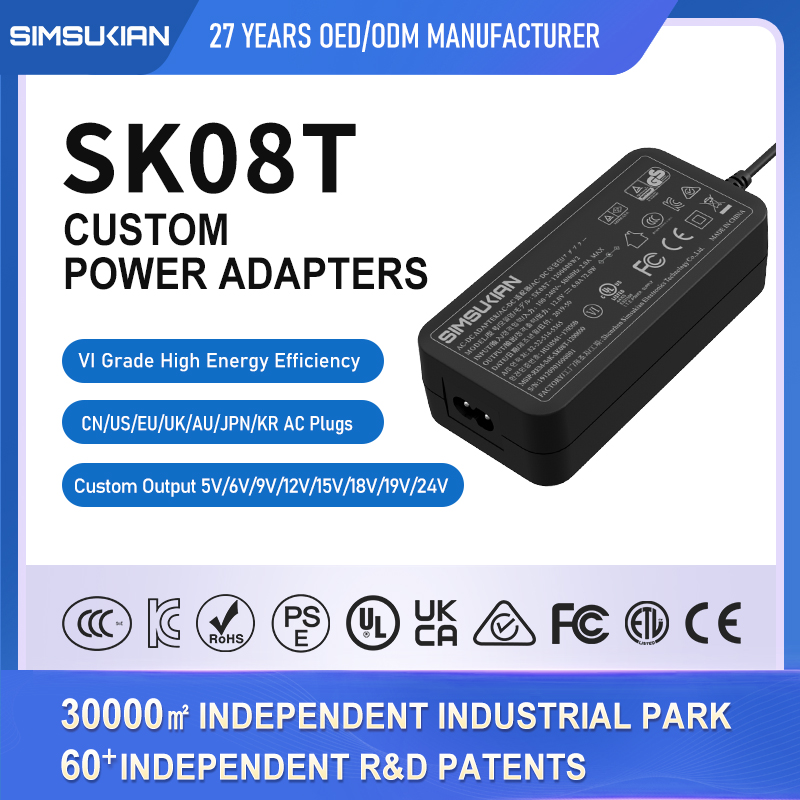

SK08T AC DC Power Adapter

Features:
1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Competitive price design, high reliability,ultraonic lamination;

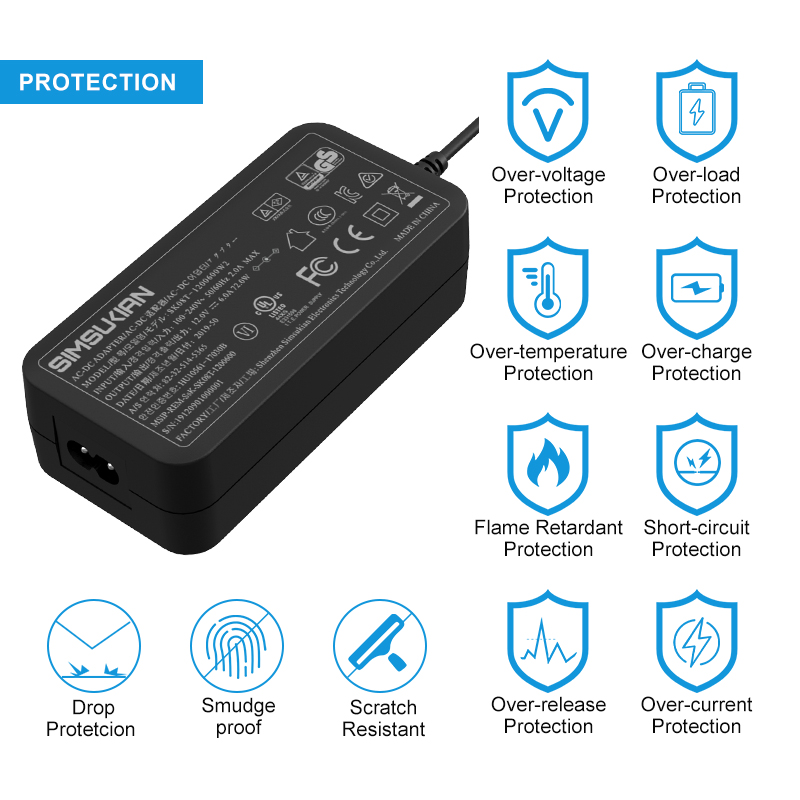

3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current:2.0A Max;
Starting Time:3s max;Inrush Current 20A/240VAC Max
5). Output characteristics: constant current / constant voltage mode; high precision, low noise;Hold up time: 20mS Min;
6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;
Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;
7). Cooling mode: natural cooling;
8). Energy efficiency accordingly: ERP / CEC-VI standard;
9). Safety standards: IEC/EN/UL62368
10).Meet ROHS standards;

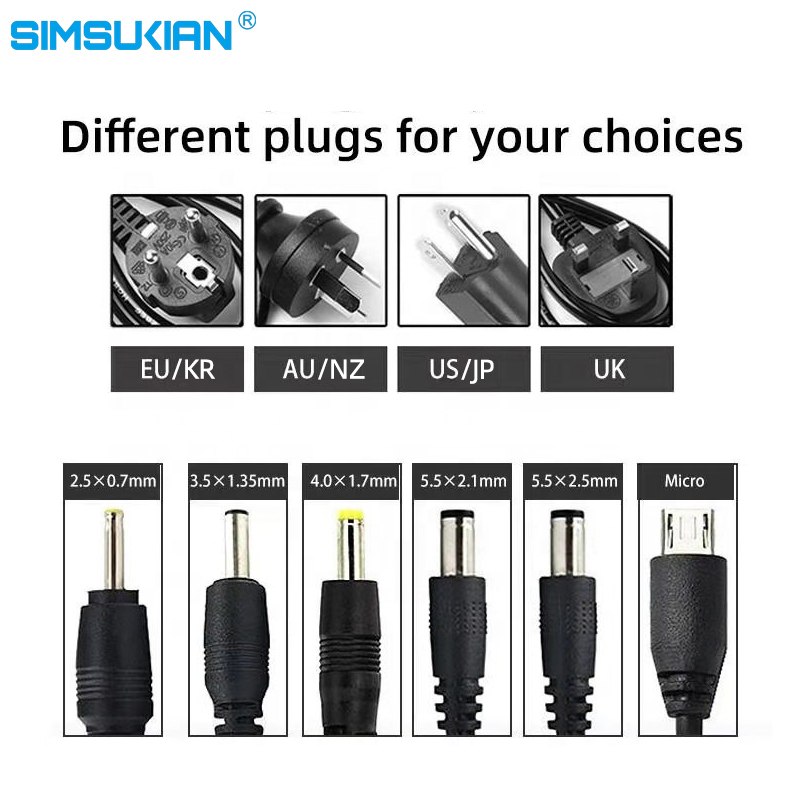

11).Pin Type: CCC / UL / ETL / FCC / CE / UKCA / GS / RCM / KC / PSE;
12).MTBF: 50,000 hours;

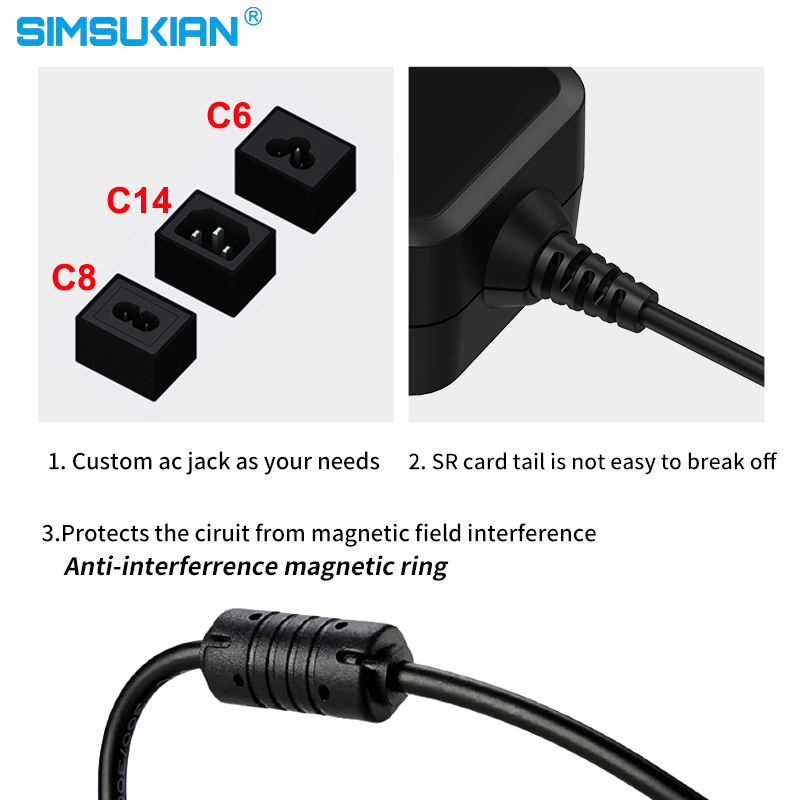

13).Input connector type: IEC-C6/IEC-C8/DB-6

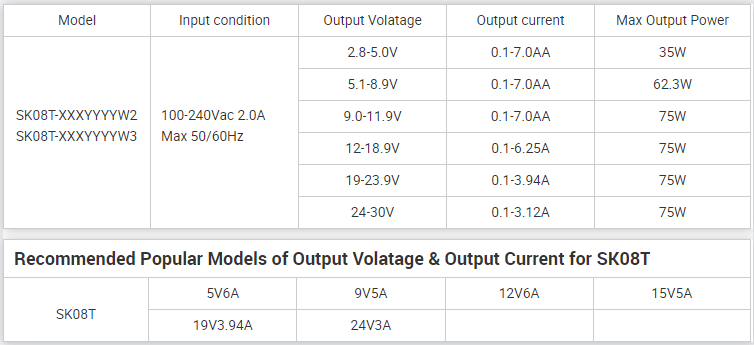

14).Electrical characteristics: (see below sheet)
