Location  Home -> Products  ->  USB Charger  ->  SK22G(12W)Convert body  ->  SK22G（12W）Convert body

【Origin Pic】

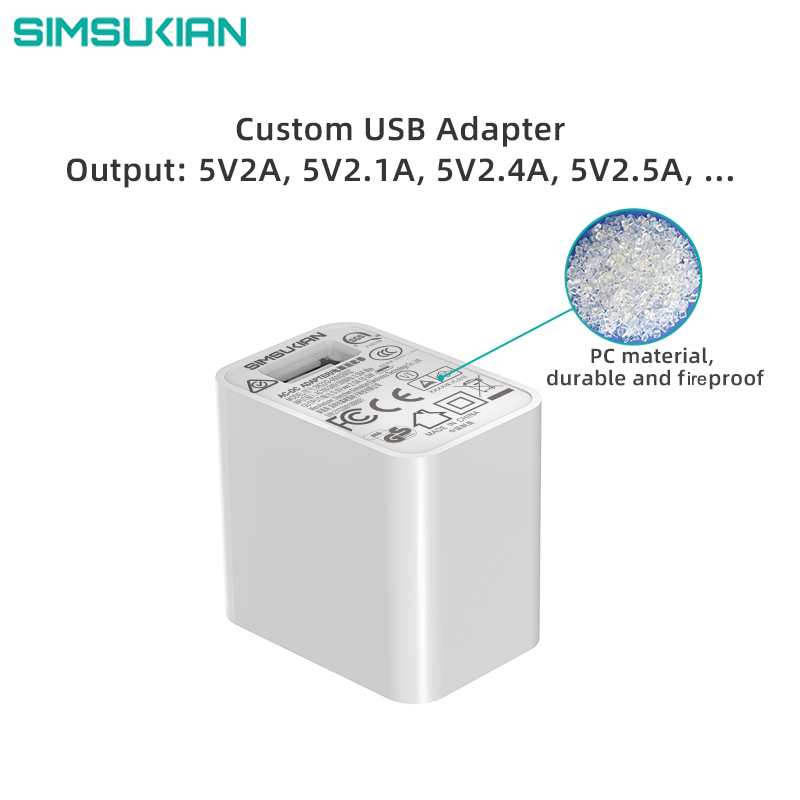

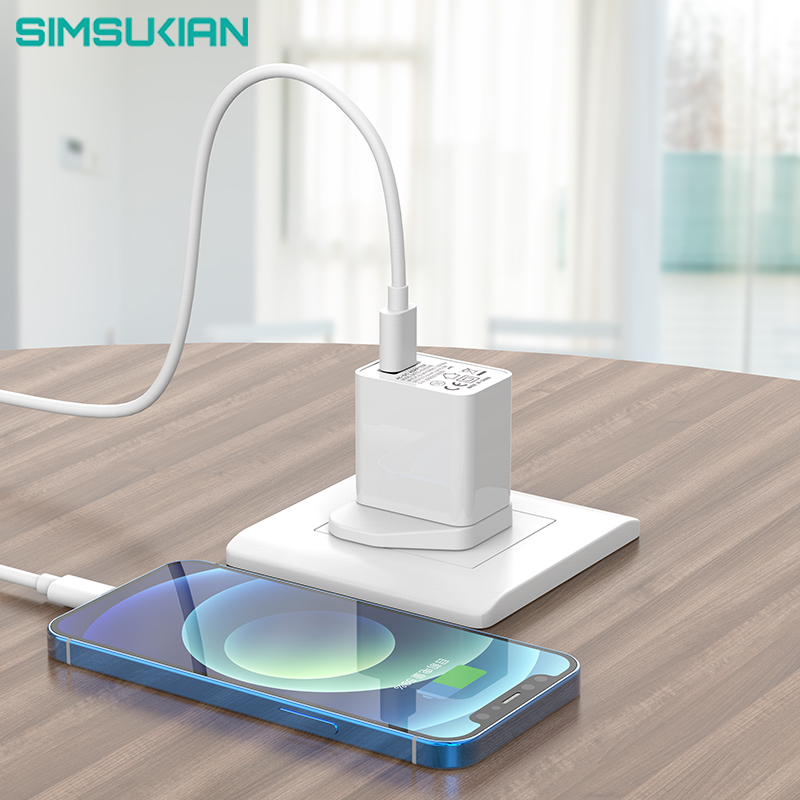

SK22G（12W）Convert body

Product Features：

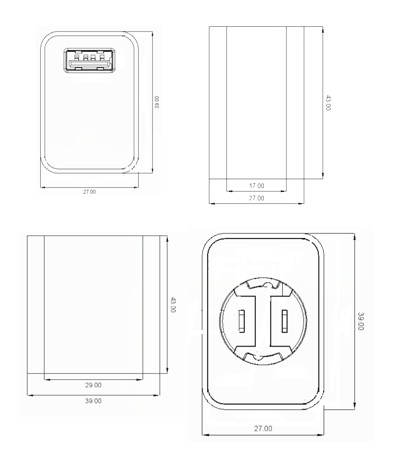

1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Competitive price design, high reliability;
3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 2.0A Max;Starting Time: 3s Max; Inrush Current: 20A/240VAC Max;
5). Output characteristics: constant voltage mode, high precision, low noise;Hold up time: 20mS Min;
6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;
7). Cooling mode: natural cooling;
8). Energy efficiency accordingly: ERP / CEC-V standard;

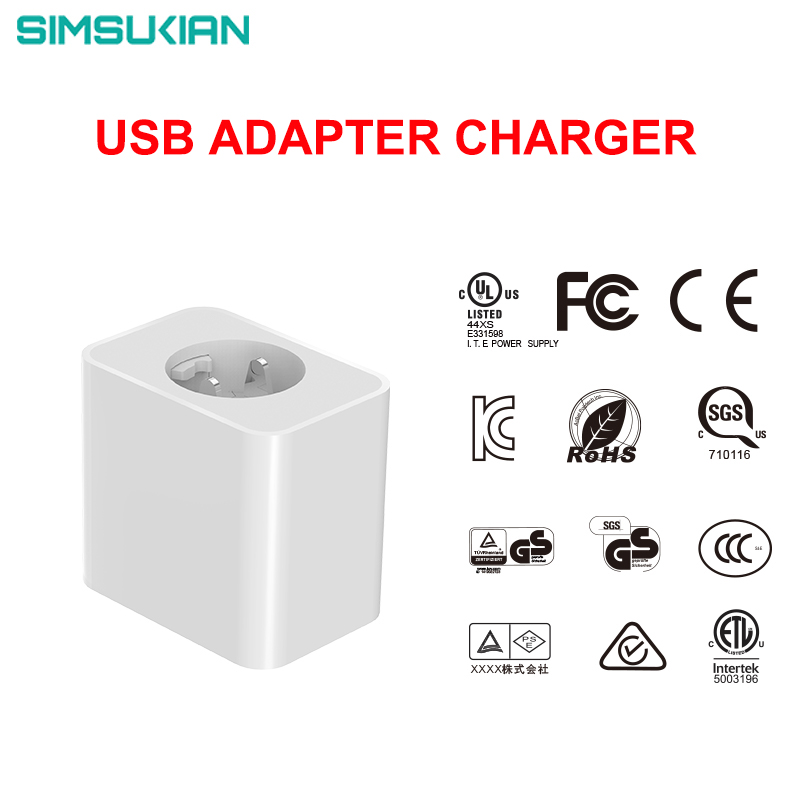

9). Safety standards: IEC/EN/UL60950;
10).Meet ROHS standards;

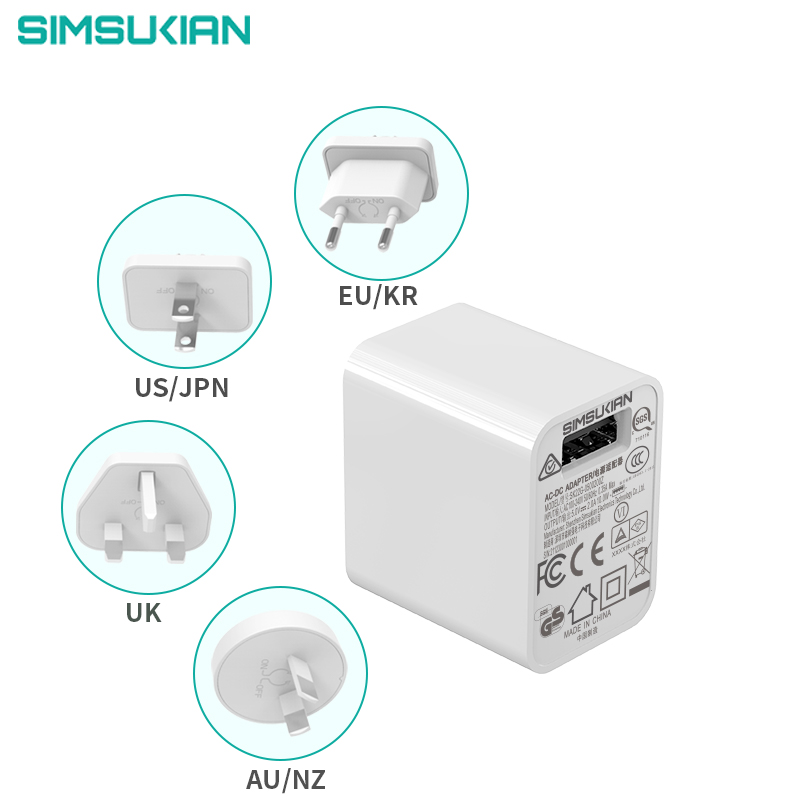

11).Pin type(Fix/Covert): UL/CCC/VDE/BS/SAA/KC/PSE；
12).Average failure rate: 50,000 hours;
13).Electrical characteristics: (see below sheet)


Model I/P Condition Output（V） Output（A） Output（W）max
SK22G-XXXYYYYW 100-240VAC
0.35A Max
50/60Hz		 2.8-4.9V 0.1-2.1A 10.29W
SK22G-XXXYYYYW 5.0-7.5V 0.1-2.1A 12W
SK22G-XXXYYYYW 7.6-10.0V 0.1-1.47A 12W
SK22G-XXXYYYYW 10.1-12.0V 0.1-1.19A 12W

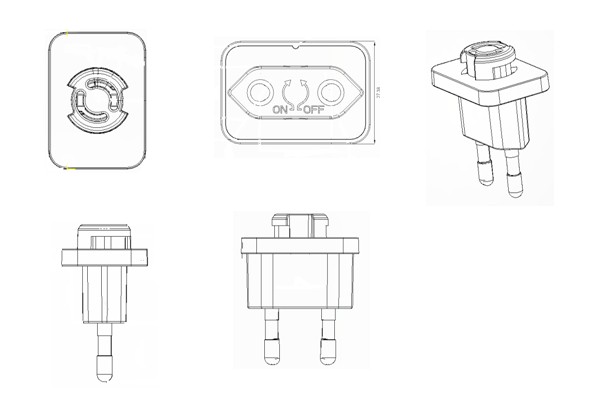

Convert body

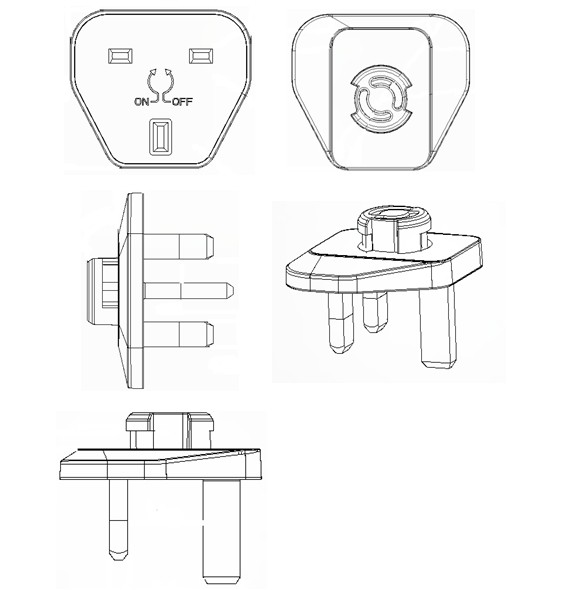

BS

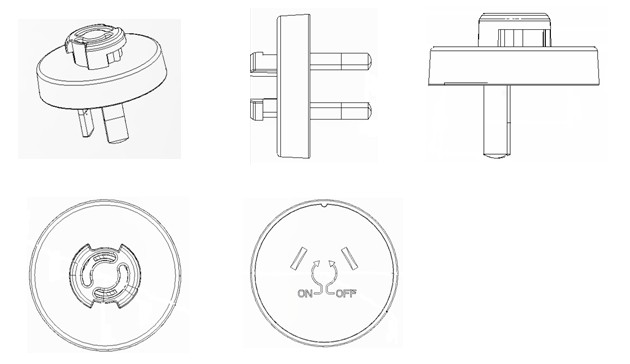

SAA

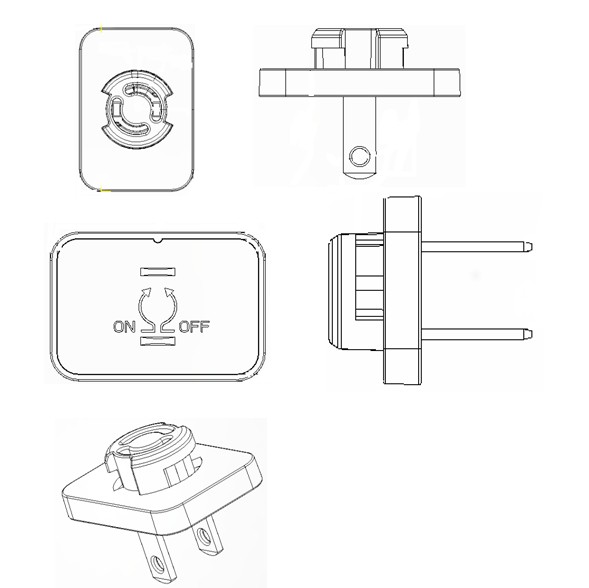

UL/PSE

GS/EK

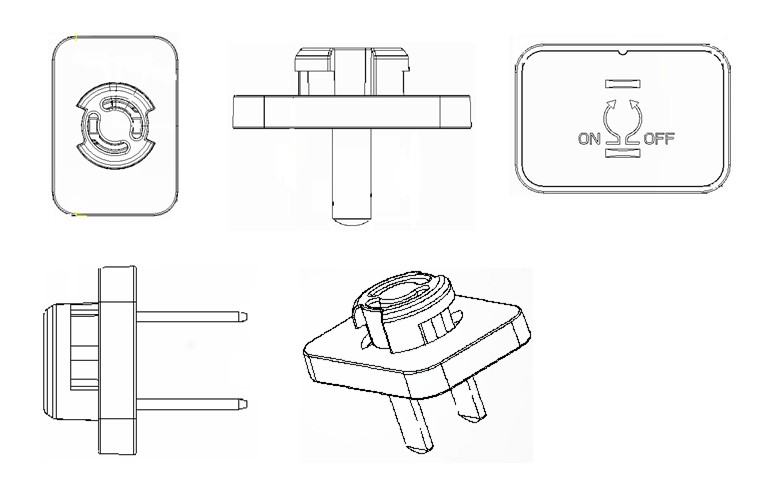

CCC
