Location  Home -> Products  ->  USB Charger  ->  SK01G(5W)  ->  SK01G-1 UK

【Origin Pic】

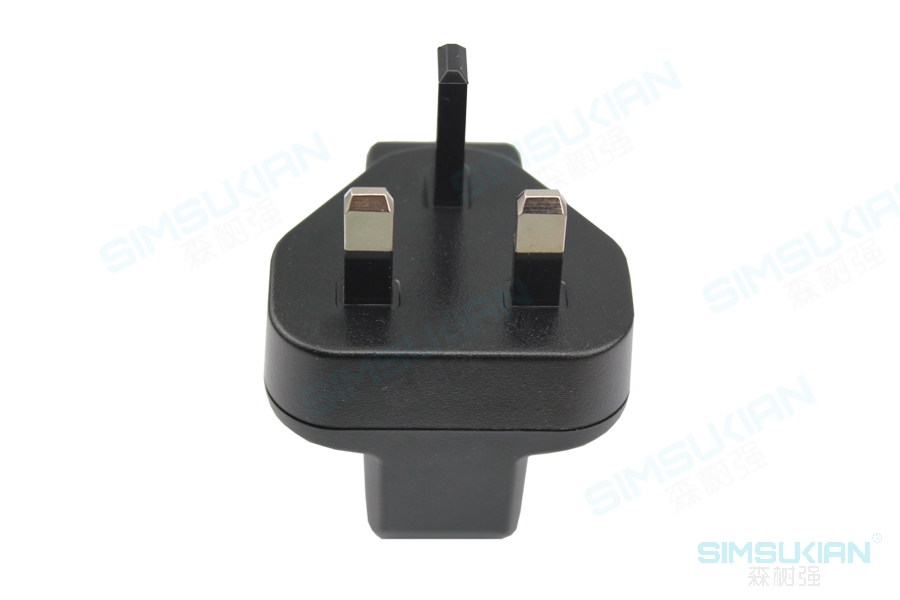

SK01G-1 UK


Product Features：


1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Competitive price design, high reliability;
3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 2.0A Max;Starting Time: 3s Max; Inrush Current: 20A/240VAC Max;
5). Output characteristics: constant voltage mode, high precision, low noise;Hold up time: 20mS Min;
6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;
7). Cooling mode: natural cooling;
8). Energy efficiency accordingly: ERP / CEC-V standard;
9). Safety standards: IEC/EN/UL60950;
10).Meet ROHS standards;
11).Pin type(Fix/Convert): UL/CCC/VDE/BS/SAA/KC/PSE；
12).Average failure rate: 50,000 hours;
13).Electrical characteristics: (see below sheet)

产品型号 输入条件 输出电压 输出电流 输出最大功率
Model I/P Condition Output（V） Output（A） Output（W）max
SK01G-XXXYYYYW 100-240V AC
0.2 Max
50/60Hz		 2.8-6.0V 0.1-1.0A 5W
SK01G-XXXYYYYW 6.1-8.9V 0.1-0.82A 5W
SK01G-XXXYYYYW 9.0-11.9V 0.1-0.0.56A 5W
SK01G-XXXYYYYW 12.0-14.9V 0.1-0.42A 5W
SK01G-XXXYYYYW 15.0V-18.9V 0.1-0.33A 5W
SK01G-XXXYYYYW 19.0-23.9V 0.1-0.26A 5W
SK01G-XXXYYYYW 24.0-30.0V 0.1-0.21 5W
