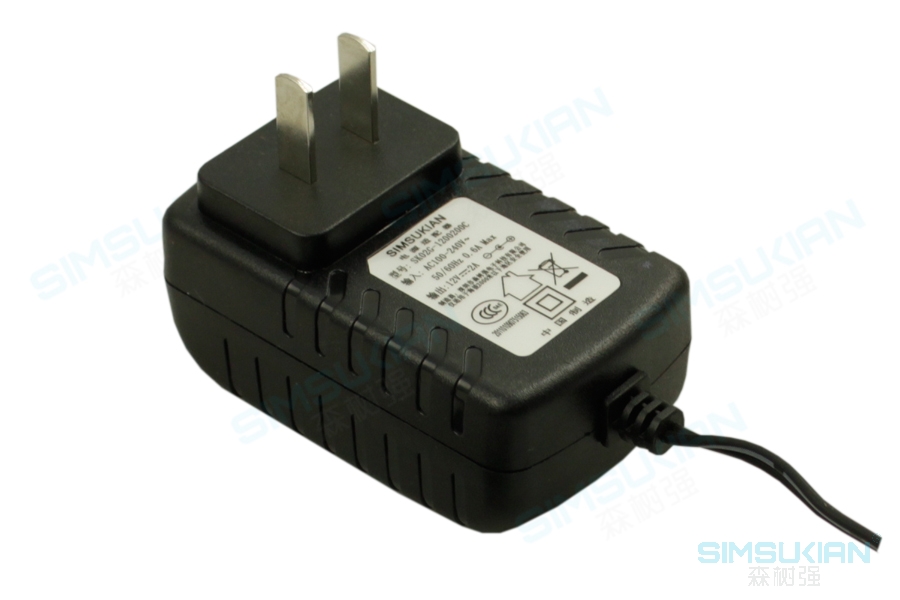

SK03G China

Product Features：

1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Low-cost design, high reliability, ultrasonic lamination;
3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 0.85A Max;Starting Time: 3s Max; Inrush Current: 30A/240VAC Max;
5). Output characteristics: constant voltage mode, high precision, low noise;Hold up time: 20mS Min;
6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;
7). Cooling mode: natural cooling;
8). Energy efficiency accordingly: ERP / CEC-V standard;
9). Safety standards: IEC/EN/UL60950;
10).Meet ROHS standards;
11).Pin Type: UL / CCC / VDE / BS / SAA / KC / PSE;
12).Average failure rate: 50,000 hours;
13).Electrical characteristics: (see below sheet)

Model	I/P Condition	Output（V）	Output（A）	Output（W）max
SK03G-XXXXYYY		5.0-7.9V	0.1-4.2A	25W
SK03G-XXXXYYY	100-	8.0-10.9V	0.1-3.6A	30W
SK03G-XXXXYYY	240VAC	11.0-14.9V	0.1-3.28A	36W
SK03G-XXXXYYY	0.85A Max	15.0-17.9V	0.1-2.4A	36W
SK03G-XXXXYYY	50/60Hz	18.0-23.9V	0.1-2.0A	36W
SK03G-XXXXYYY		24.0-36.0V	0.1-1.5A	36W
