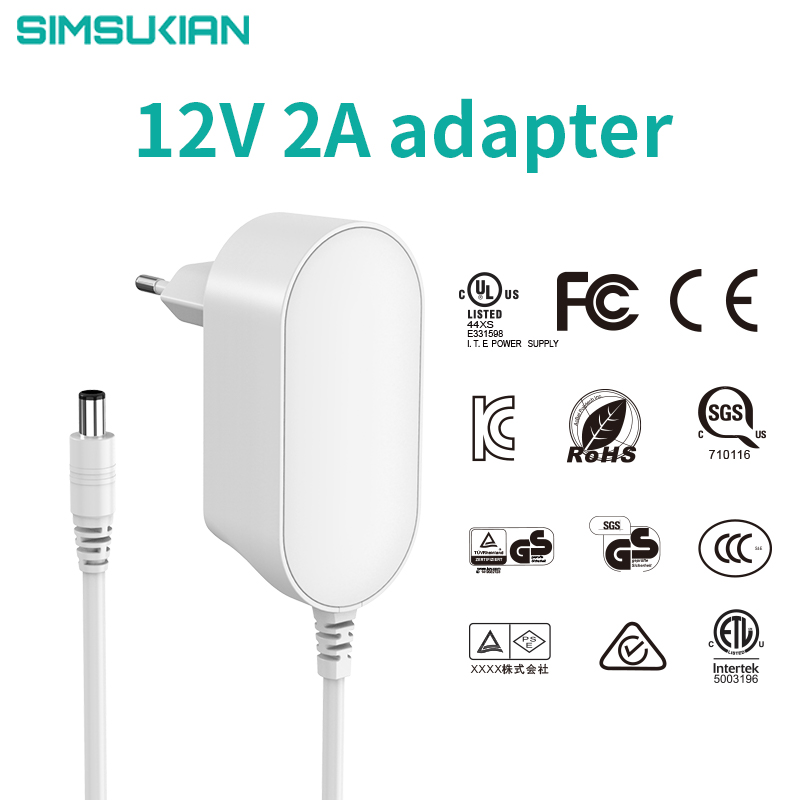

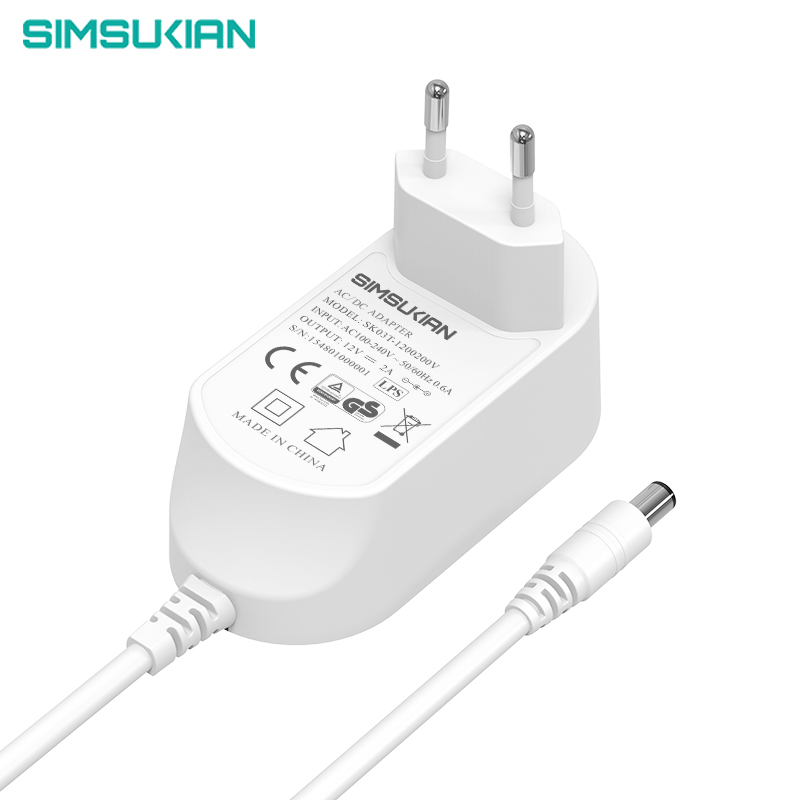

SK03T1 EU adapter

4dhcpmingchen

【Origin Pic】

Features:

1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;

2). Competitive price design, high reliability,ultraonic lamination;

3). Built-in over voltage, over current and short circuit protection;

4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 0.6A Max;

Starting Time:3s max;Inrush Current20A/240VAC Max

5). Output characteristics: constant current / constant voltage mode; high precision, low noise;Hold up time: 20mS Min;

6). Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH;

Storage temperature: -20 ℃ -85 ℃, 5% -95% RH;

7). Cooling mode: natural cooling;

8). Energy efficiency accordingly: ERP / CEC-VI standard;

9). Safety standards: IEC/EN60950-1, IEC/EN61558, EN55022, EN55024, EN55014, COMMISION REGULATION No 278/2009;

10).Meet ROHS standards;

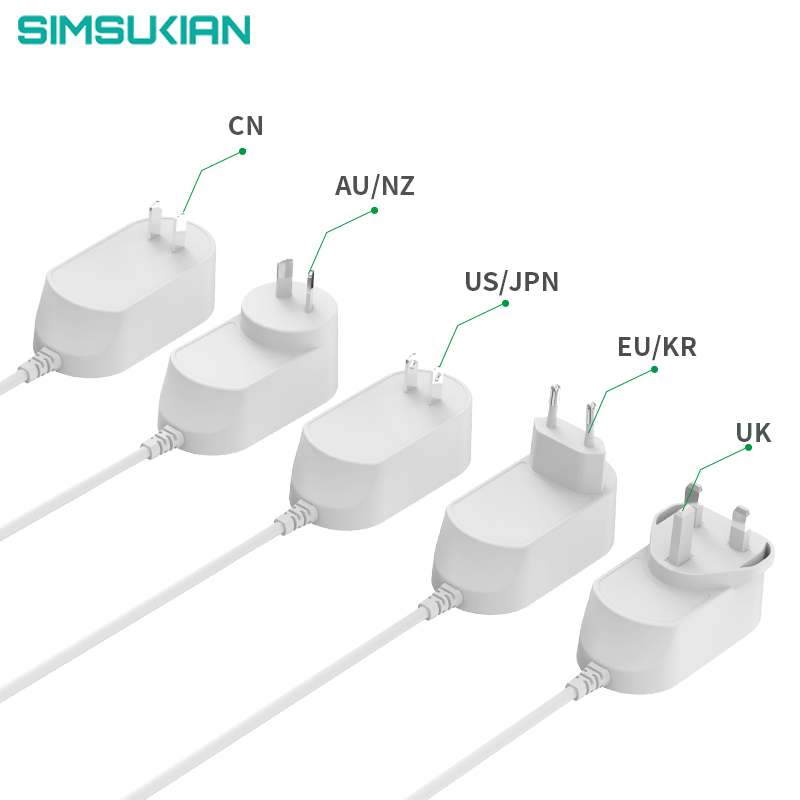

11).Pin Type: UL / CCC / VDE / BS / SAA / KC / PSE;

12).MTBF: 50,000 hours;

13).Electrical characteristics: (see below sheet)
